Seco
Indexable Drilling - Seco 03080743
MFR# 03080743Series PerfoMAX
$914.37List $1,045.45
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

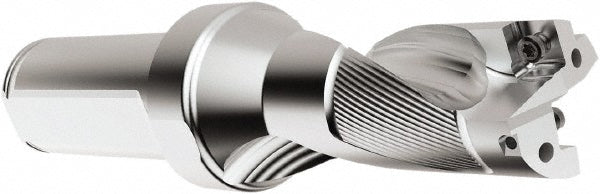

The Seco 03080743 indexable drilling. Series PerfoMAX.
Specifications
Body length106.20
Collar diameter (mm)50.00
Compatible drill styleSD522
Compatible insert size code11T308; 12T3
Compatible insert styleSCGX; SPGX
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2xD
Drill diameter in1-1/2
Flute length (mm)81.20
Insert compatibilitySPGX12T3..
Maximum drill depth in3
Maximum drill diameter in1-1/2
Modular connection sizeR7
Neck diameter in1.9690
Number of drill inserts2
Shank diameter in1-1/2
Shank length (mm)66.68
Shank typeStraight-Cylindrical
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
