Seco

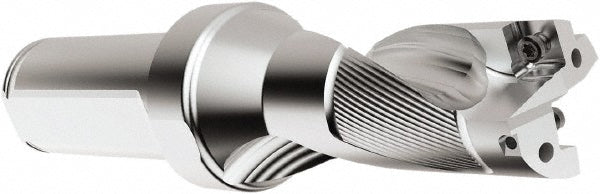

Indexable Drilling - Seco 03080748
MFR# 03080748Series SD522
$936.09List $1,070.28
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03080748 indexable drilling. Series SD522.
Specifications
Body length4.4310
Collar diameter1.9690
Compatible drill styleSD522
Compatible insert size code12T3; 120408
Compatible insert styleSPGX; SCGX
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2xD
Flute length3.4470
Insert compatibilitySPGX12T3; SCGX120408
Insert lock screwC03508-T15P; C05012-T15P
Insert size0.5000
Maximum drill depth in3-1/4
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter in1-5/8
Modular connection sizeR7
Neck diameter in1.9690
Number of drill inserts2
Overall length7.0560
Shank diameter in1-1/2
Shank length2.6250
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
