Seco

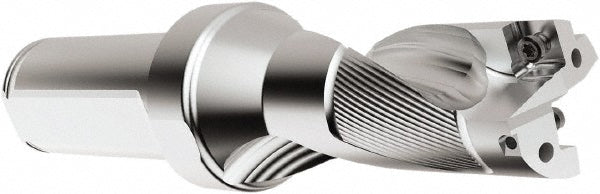

Indexable Drilling - Seco 03080769
MFR# 03080769Series SD522
$991.82List $1,134.00
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03080769 indexable drilling. Series SD522.
Specifications
Body length5.1810
Collar diameter2.3370
Compatible drill styleSD522
Compatible insert size code1504; 150512
Compatible insert styleSPGX; SCGX
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2xD
Flute length4.1970
Insert compatibilitySPGX1504; SCGX150512
Insert lock screwC04011-T15P; C05012-T15P
Insert size0.6250
Maximum drill depth in4
Maximum drill depth range4.0000 to 5.0000
Maximum drill diameter in2
Modular connection sizeR7
Neck diameter in2.3370
Number of drill inserts2
Overall length7.8060
Shank diameter in1-1/2
Shank length2.6250
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
