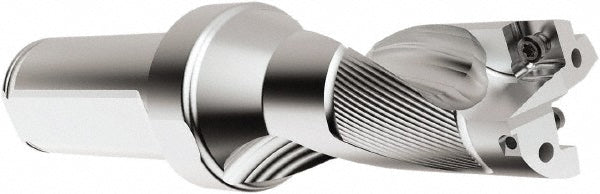

Indexable Drilling - Seco 03080779
MFR# 03080779Series PerfoMAX
$1,220.86List $1,371.60
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03080779 indexable drilling. Series PerfoMAX.
Specifications
Body length144.30
Collar diameter (mm)59.35
Compatible drill styleSD522
Compatible insert size code150512; 1904
Compatible insert styleSCGX; SPGX
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2xD
Drill diameter in2-1/4
Flute length (mm)119.30
Insert compatibilitySPGX1904..
Maximum drill depth in4-1/2
Maximum drill diameter in2-1/4
Modular connection sizeR7
Neck diameter in2.3370
Number of drill inserts2
Shank diameter in1-1/2
Shank length (mm)66.68
Shank typeStraight-Cylindrical
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
