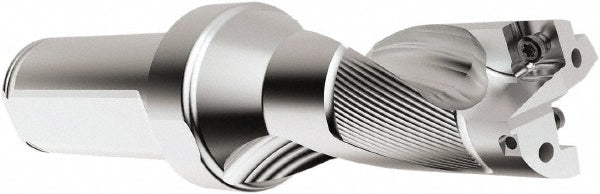

Indexable Drilling - Seco 03080821
MFR# 03080821Series SD522
$990.15List $1,112.40
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03080821 indexable drilling. Series SD522.
Specifications
Body length108.00
Collar diameter (mm)42.00
Compatible drill styleSD522
Compatible insert size code12T3; 11T308
Compatible insert styleSPGX; SCGX
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2xD
Flute length (mm)83.00
Insert compatibilitySPGX12T3; SCGX11T308
Insert lock screwC03508-T15P
Insert size (mm)12.70; 11.51
Maximum drill depth (mm)78.00
Maximum drill depth range (mm)75.00 to 100.00
Maximum drill diameter (mm)40.01
Number of drill inserts2
Shank diameter (mm)32.00
Shank length (mm)60.00
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
