0.5000" 6-Flute Solid Carbide Single End Mill, AlTiN - Seco 03115958

Seco

0.5000" 6-Flute Solid Carbide Single End Mill, AlTiN - Seco 03115958

MFR# 03115958Series SN638

$143.46List $184.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes6
MaterialSolid Carbide
CoatingAlTiN

Description

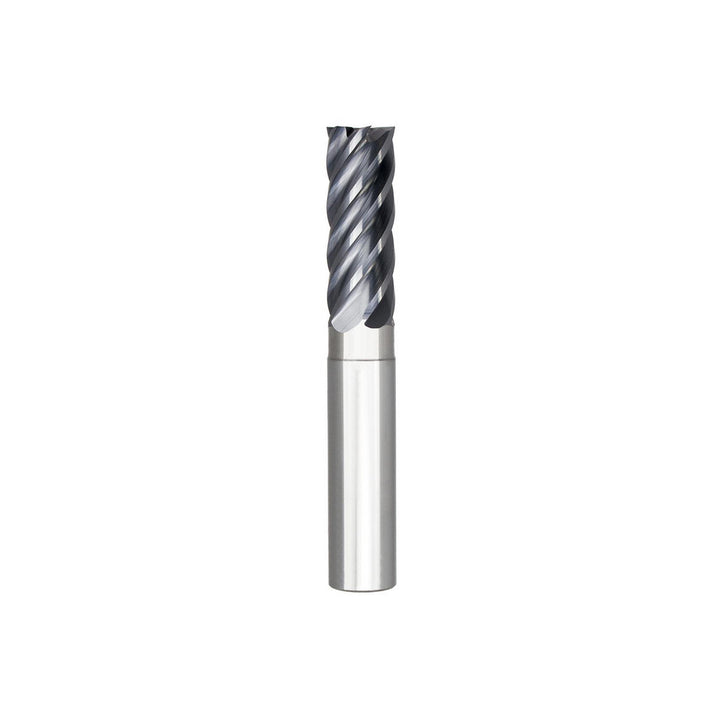

The Seco 03115958 is a 0.5000 6-flute Solid Carbide (Micrograin) single end mill with a AlTiN finish for longer tool life. 1-1/8 length of cut. Series SN638.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Length of cut in1-1/8
Length typeRegular
Material gradeMicrograin
Mill diameter0.5000
Mill diameter frac in1/2
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes6
Overall length tolerance+0.060/-0.060 in
Reach length2.0000
Shank diameter in1/2
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexNo
