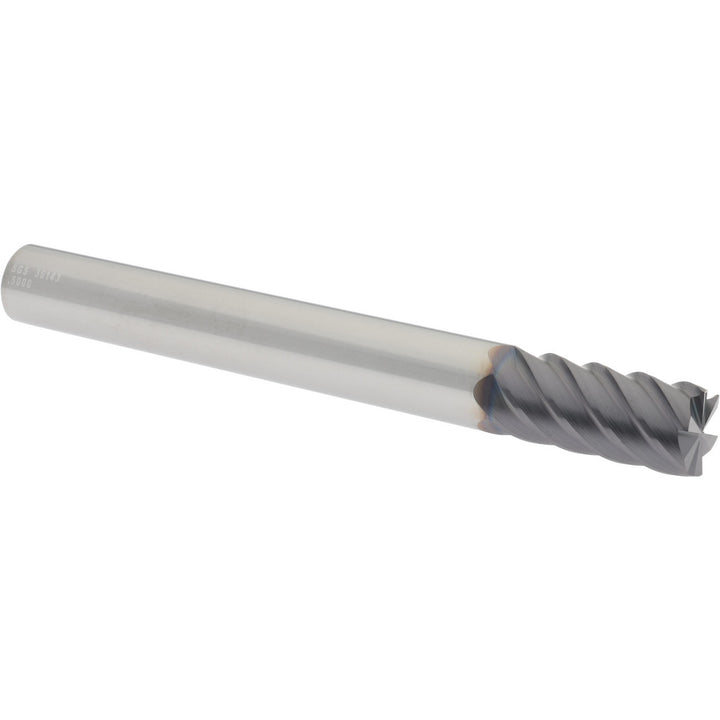

1/2" 6-Flute Solid Carbide Square End Mill, AlTiN - SGS 36143

SGS

1/2" 6-Flute Solid Carbide Square End Mill, AlTiN - SGS 36143

MFR# 36143Series 57

$187.66List $240.68 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes6
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 36143 is a 1/2 6-flute Solid Carbide square end mill. Suited for hard material. 1-3/32 length of cut, 4-1/2 overall length. Series 57.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-3/32
Length typeExtra Long
Mill diameter in1/2
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes6
Overall length in4-1/2
Primary workpiece materialHard Material
Shank diameter in1/2
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Seco0.5000" 6-Flute Solid Carbide Single End Mill, AlTiN - Seco 03115958 $143.46 OSG1/2" 6-Flute Solid Carbide Corner Radius End Mill, DUROREY - OSG 84702323 $170.77 Supermill1/2" 6-Flute Solid Carbide Square End Mill, TXC - Supermill 5250653 $70.34 Seco1/2" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 17004778 $339.17
