Seco

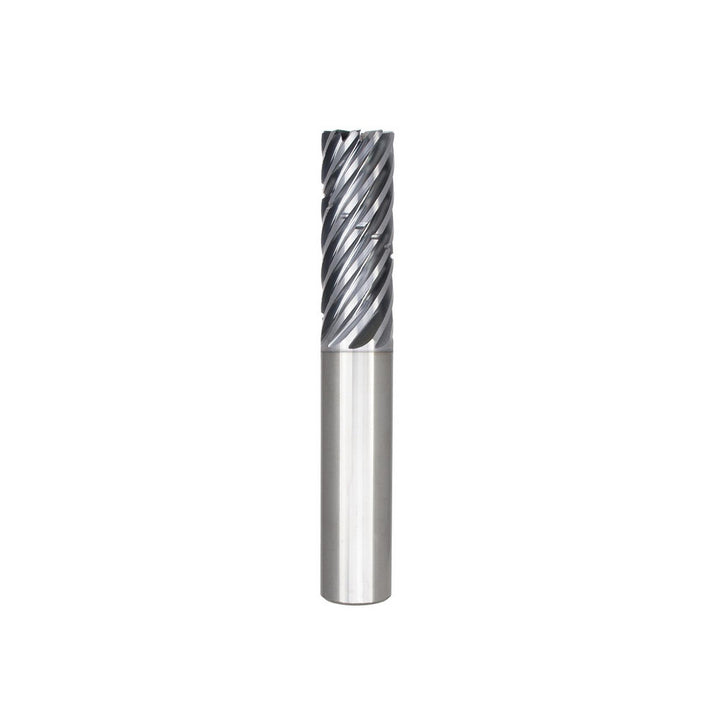

1" 9-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 03116011

MFR# 03116011Series SCS938R

$697.05List $894.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes9

MaterialSolid Carbide

CoatingAlTiN

Description

The Seco 03116011 is a 1 9-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 3-1/4 length of cut, 6 overall length. Series SCS938R.

Specifications

CentercuttingNo

ChipbreakerYes

Coating finishAlTiN

Coolant throughNo

Corner radius0.0300

Corner radius tolerance+0.00100 to -0.00100 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut in3-1/4

Length typeStandard

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Material gradeMicrograin

Material removal typeRoughing

Mill diameter in1

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes9

Overall length in6

Overall length tolerance-0.0600/0.0600 in

PitchSuper Close

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Shank diameter in1

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexNo
