Seco

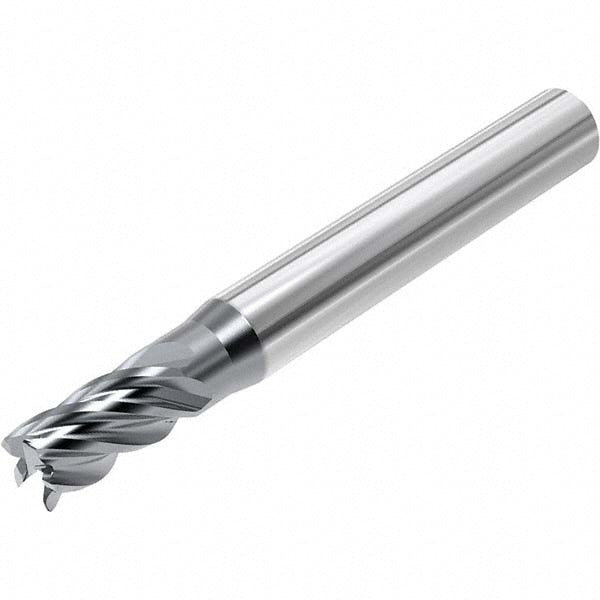

5/32" 5-Flute Solid Carbide Corner Radius End Mill, AlCrN - Seco 03257831

MFR# 03257831Series STR540

$41.31List $52.99 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/32

Flutes5

MaterialSolid Carbide

CoatingAlCrN

Description

The Seco 03257831 is a 5/32 5-flute Solid Carbide (Fine Grain) corner radius end mill with a AlCrN finish for longer tool life. Suited for high-temperature alloy, stainless steel, steel, superalloys & titanium. 5/16 length of cut, 2 overall length. Series STR540.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlCrN

Coolant throughNo

Corner radius0.0100

Corner radius tolerance+0.00100 to -0.00100 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in5/16

Length typeShort

Material gradeFine Grain

Mill diameter in5/32

Mill diameter tolerance+0.000100/-0.002000 in

Number of flutes5

Overall length in2

Overall length tolerance+0.0600/-0.0600 in

PitchNormal

Primary workpiece materialHigh-Temperature Alloy; Stainless Steel; Steel; Superalloys & Titanium

Shank diameter in3/16

Shank diameter tolerance-0.0001 - -0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexNo
