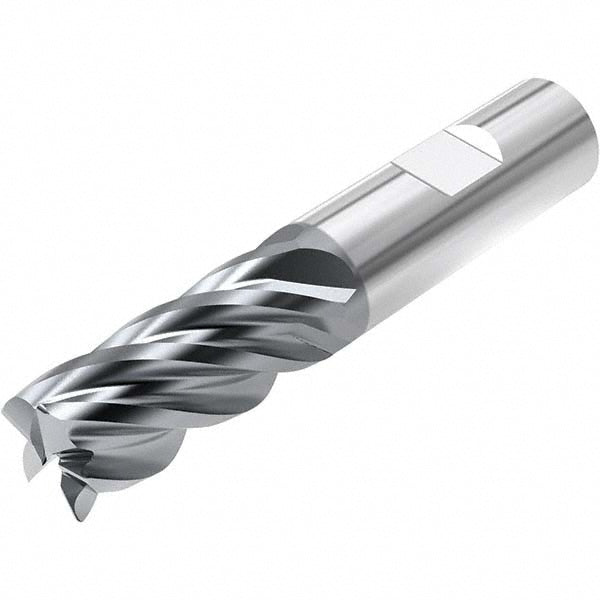

5/8" 5-Flute Solid Carbide Corner Radius End Mill, AlCrN - Seco 03257930

Seco

5/8" 5-Flute Solid Carbide Corner Radius End Mill, AlCrN - Seco 03257930

MFR# 03257930Series STR540

$220.24List $253.01 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes5
MaterialSolid Carbide
CoatingAlCrN

Description

The Seco 03257930 is a 5/8 5-flute Solid Carbide (Fine Grain) corner radius end mill with a AlCrN finish for longer tool life. 2-1/8 length of cut, 4 overall length. Series STR540.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlCrN
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut in2-1/8
Length typeExtra Long
Material gradeFine Grain
Mill diameter in5/8
Number of flutes5
Overall length in4
PitchNormal
Shank diameter in5/8
Shank typeWeldon Flat
Single or double endSingle
Tir maximum0.0005
Variable helixNo
Variable indexNo
