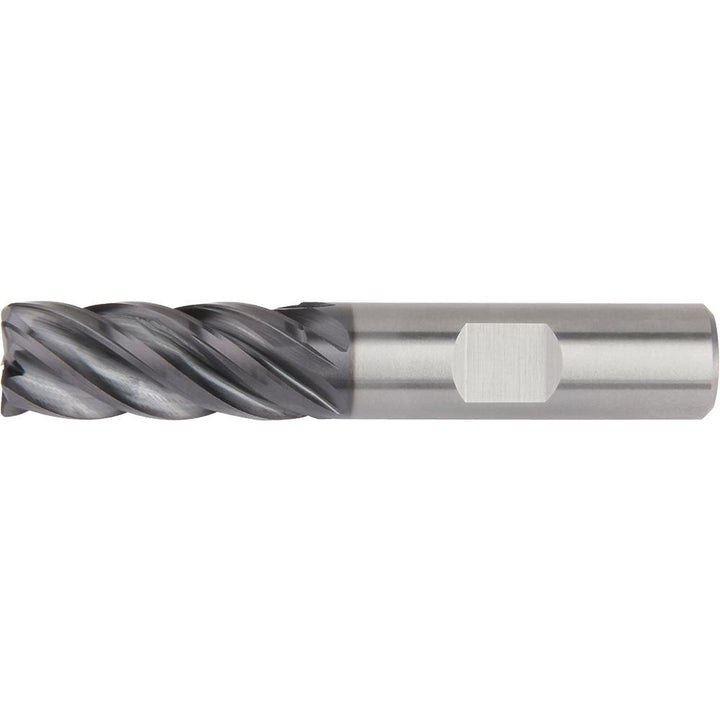

5/8" 5-Flute Solid Carbide Square End Mill, AlTiN - Widia 6517124

Widia

5/8" 5-Flute Solid Carbide Square End Mill, AlTiN - Widia 6517124

MFR# 6517124Series 5V0C

$300.32List $385.18 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Widia 6517124 is a 5/8 5-flute Solid Carbide (WP15PE) square end mill with a WP15PE finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, hardened materials. 2-5/8 length of cut, 5 overall length. Series 5V0C.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle38
Length of cut in2-5/8
Length typeRegular
Material gradeWP15PE
Mill diameter in5/8
Neck diameter0.6250
Neck length2.6250
Number of flutes5
Overall length in5
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Hardened Materials
Secondary workpiece materialHigh-Temp Alloy
Shank diameter in5/8
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
