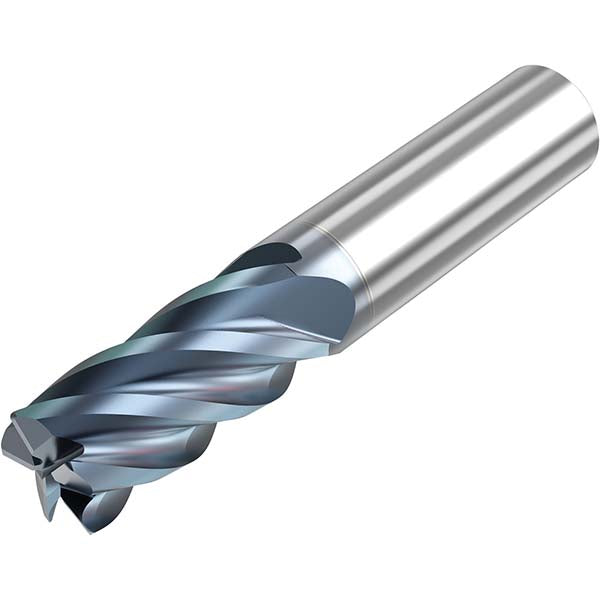

1/2" 5-Flute Solid Carbide Corner Radius End Mill, HTA - Seco 10008601

Seco

1/2" 5-Flute Solid Carbide Corner Radius End Mill, HTA - Seco 10008601

MFR# 10008601Series STS540

$211.07List $266.00 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingHTA

Description

The Seco 10008601 is a 1/2 5-flute Solid Carbide corner radius end mill with a HTA finish for longer tool life. 1-1/4 length of cut, 3 overall length. Series STS540.

Specifications

CentercuttingYes
Coating finishHTA
Corner radius0.0600
Corner radius tolerance+0.00100 to -0.00100 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Flute directionRight Hand
Flute typeSpiral
Length of cut in1-1/4
Length typeStandard
Material removal typeRoughing
Mill diameter in1/2
Mill diameter tolerance+0.000100/-0.002000 in
Number of flutes5
Overall length in3
Overall length tolerance+0.0600/-0.0600 in
Shank diameter in1/2
Shank diameter tolerance-0.0001 - -0.0004 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
