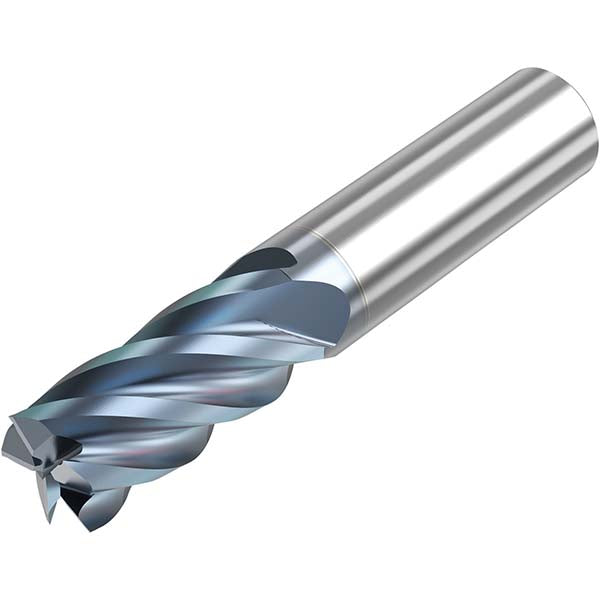

3/8" 5-Flute Solid Carbide Square End Mill, HTA - Seco 10008609

Seco

3/8" 5-Flute Solid Carbide Square End Mill, HTA - Seco 10008609

MFR# 10008609Series STS540

$119.02List $150.00 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes5
MaterialSolid Carbide
CoatingHTA

Description

The Seco 10008609 is a 3/8 5-flute Solid Carbide (Micrograin) square end mill with a HTA finish for longer tool life. Suited for steel, stainless steel, high-temp alloy, hardened materials. 7/8 length of cut, 2-1/2 overall length. Series STS540.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishHTA
Coating finish familyHTA
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in7/8
Length typeShort
Material gradeMicrograin
Mill diameter in3/8
Number of flutes5
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy; Hardened Materials
Shank diameter in3/8
Single or double endSingle
System of measurementFractional Inch
Variable helixYes
Variable indexYes
