3/8" 3-Flute Solid Carbide Square End Mill, ANF - Seco 10023119

MFR# 10023119Series AN345

$159.84List $205.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes3

MaterialSolid Carbide

CoatingANF

Description

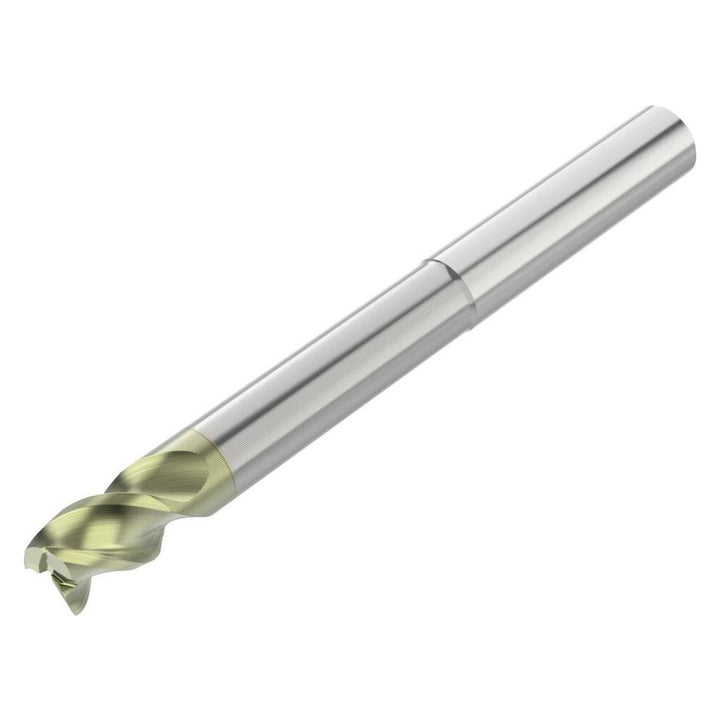

The Seco 10023119 is a 3/8 3-flute Solid Carbide (Micrograin) square end mill with a ANF finish for longer tool life. Suited for aluminum & non-ferrous. 3/4 length of cut, 5 overall length. Series AN345.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishANF

Coating finish familyANF

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in3/4

Length typeExtra Long

Material gradeMicrograin

Mill diameter in3/8

Mill diameter tolerance0.0020 in

Neck diameter (mm)0.36

Number of flutes3

Overall length in5

Primary workpiece materialAluminum & Non-Ferrous

Reach length in3

Shank diameter in3/8

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0050

Variable helixNo

Variable indexNo
