Seco

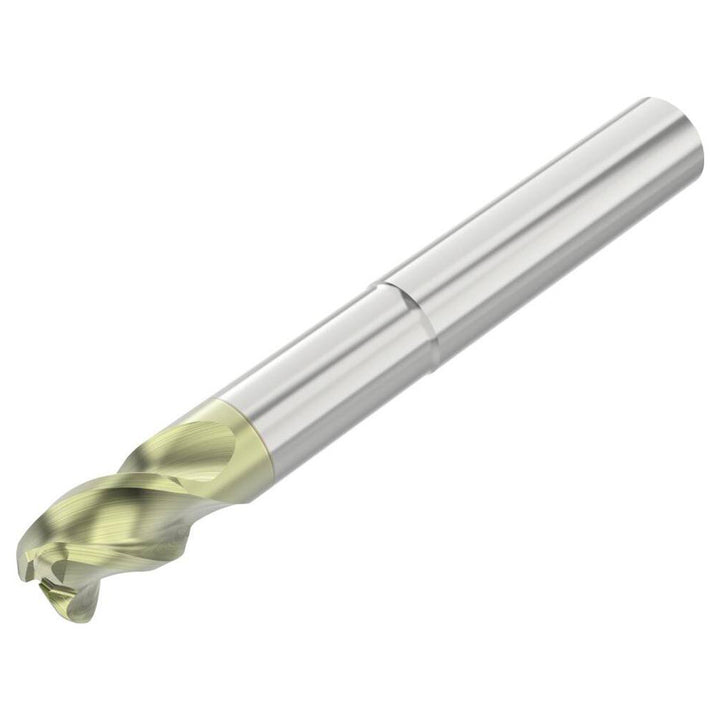

1/2" 3-Flute Solid Carbide Corner Radius End Mill, ANF - Seco 10023151

MFR# 10023151Series AN345R

$199.60List $256.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes3

MaterialSolid Carbide

CoatingANF

Description

The Seco 10023151 is a 1/2 3-flute Solid Carbide corner radius end mill with a ANF finish for longer tool life. Suited for non-ferrous metal. 5/8 length of cut, 4 overall length. Series AN345R.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishANF

Coolant throughNo

Corner radius0.1250

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in5/8

Length typeShort

Material applicationNon-Ferrous Metal

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance-0.0020/0.0000 in

Neck diameter0.4800

Number of flutes3

Overall length in4

Overall length tolerance-0.0600/0.0600 in

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in2-1/8

Shank diameter in1/2

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexNo
