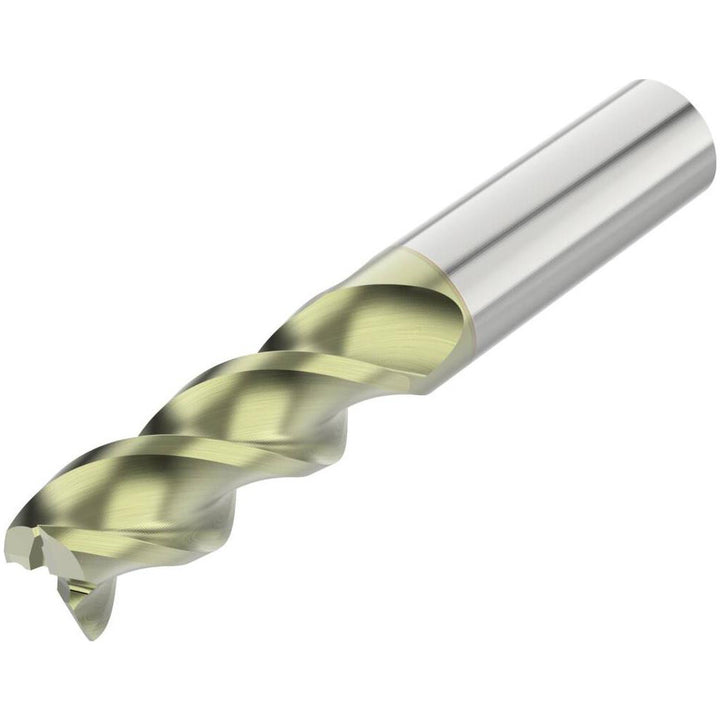

0.7874" 3-Flute Solid Carbide Square End Mill, ANF - Seco 10023176

Seco

0.7874" 3-Flute Solid Carbide Square End Mill, ANF - Seco 10023176

MFR# 10023176Series A345

$491.18
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingANF

Description

The Seco 10023176 is a 0.7874 3-flute Solid Carbide (Micrograin) square end mill with a ANF finish for longer tool life. Suited for aluminum & non-ferrous. Series A345.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishANF
Coating finish familyANF
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut (mm)50.00
Length typeStandard
Material gradeMicrograin
Mill diameter0.7874
Mill diameter tolerance0.0508 mm
Number of flutes3
Overall length (mm)105.00
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter0.7874
Shank typeStraight
Single or double endSingle
System of measurementMetric
Tir maximum (mm)0.01
Variable helixNo
Variable indexNo
