3/8" 4-Flute Solid Carbide Square End Mill, SIRON-A - Seco 10268313

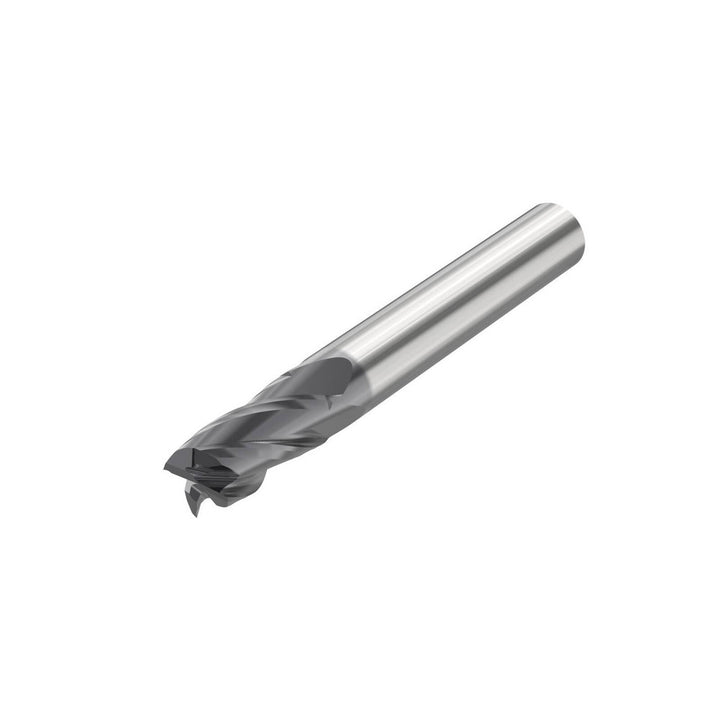

Name: 3/8" 4-Flute Solid Carbide Square End Mill, SIRON-A - Seco 10268313
Brand: Seco
SKU: 10268313
Price: 49.75 USD
Availability: InStock

MFR# 10268313Series C5141

$49.75List $62.70 Save 20%

Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

CoatingSIRON-A

Description

The Seco 10268313 is a 3/8 4-flute Solid Carbide (Micrograin) square end mill with a SIRON-A finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy. 1 length of cut, 2-1/2 overall length. Series C5141.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishSIRON-A

Coating finish familySIRON-A

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle30

Length of cut in1

Length of cut range1.0000 to 1.5000

Length typeShort

Material gradeMicrograin

Mill diameter in3/8

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes4

Overall length in2-1/2

Overall length toleranceNAS 986

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy

Reach length in1

Shank diameter in3/8

Shank diameter toleranceANSI B94.19

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexNo
