Seco

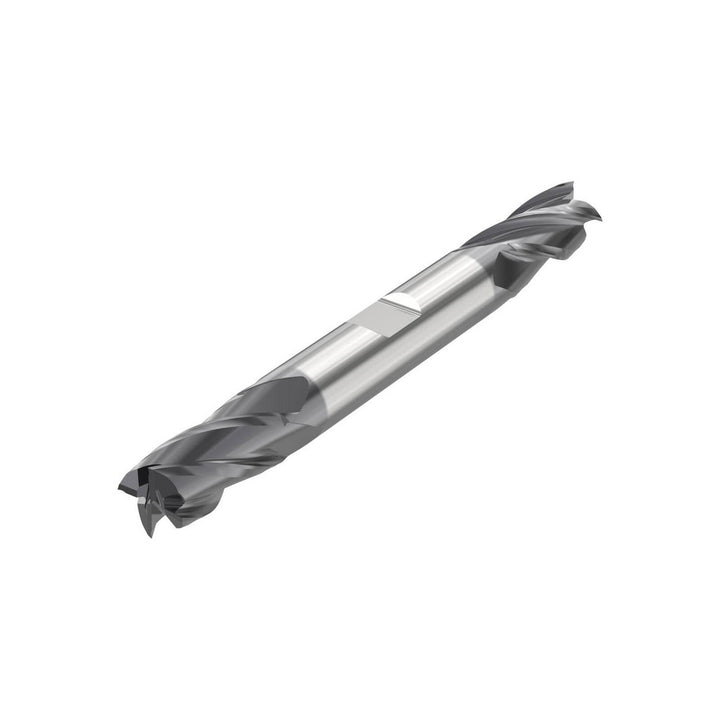

3/8" 4-Flute Solid Carbide Square End Mill, SIRON-A - Seco 10268418

MFR# 10268418Series C5141

$71.03List $91.10 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

CoatingSIRON-A

Description

The Seco 10268418 is a 3/8 4-flute Solid Carbide (Micrograin) square end mill with a SIRON-A finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy. 3/4 length of cut, 3-1/2 overall length. Series C5141.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishSIRON-A

Coating finish familySIRON-A

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle30

Length of cut in3/4

Length of cut range0.7000 to 1.0000

Length typeShort

Material gradeMicrograin

Mill diameter in3/8

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes4

Overall length in3-1/2

Overall length toleranceNAS 986

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy

Reach length in3/4

Shank diameter in3/8

Shank diameter toleranceANSI B94.19

Shank typeWeldon Flat

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexNo
