Seco

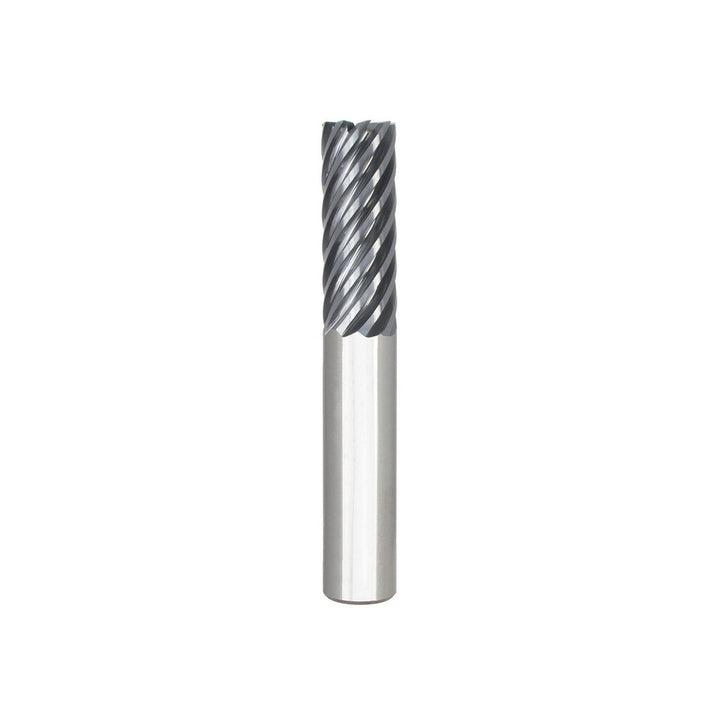

5/8" 9-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 17002348

MFR# 17002348Series S938R

$252.62List $324.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes9

MaterialSolid Carbide

CoatingAlTiN

Description

The Seco 17002348 is a 5/8 9-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-5/8 length of cut, 4 overall length. Series S938R.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0300

Corner radius tolerance+0.00100 to -0.00100 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut in1-5/8

Length typeStandard

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in5/8

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes9

Overall length in4

Overall length tolerance-0.0600/0.0600 in

PitchSuper Close

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Shank diameter in5/8

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexNo
