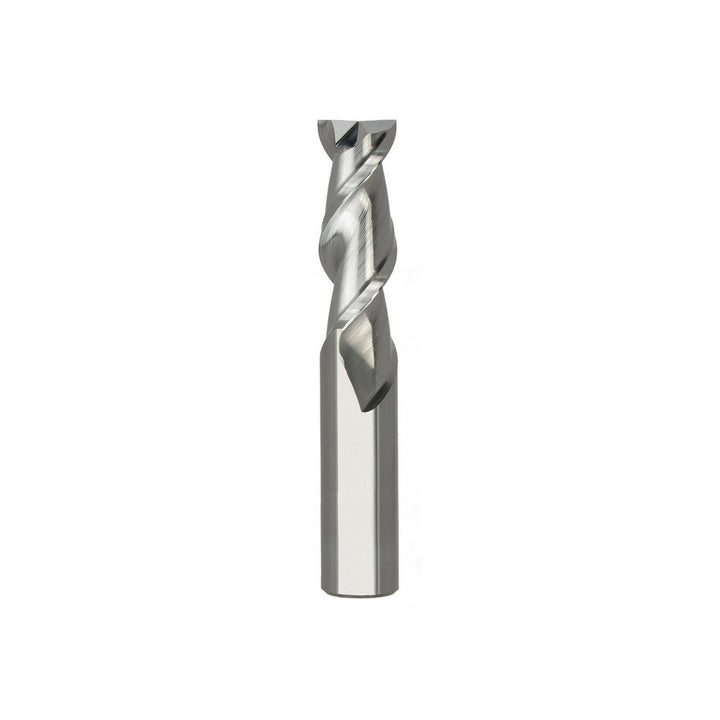

5/32" 2-Flute Solid Carbide Square End Mill - Seco 17002951

Seco

5/32" 2-Flute Solid Carbide Square End Mill - Seco 17002951

MFR# 17002951Series A245

$44.36
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Seco 17002951 is a 5/32 2-flute Solid Carbide (Micrograin) square end mill. Suited for aluminum & non-ferrous. 1/2 length of cut, 2 overall length. Series A245.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1/2
Length of cut range0.5000 - 0.6000
Material gradeMicrograin
Mill diameter in5/32
Mill diameter tolerance+0.0000 to -0.0020 in
Number of flutes2
Overall length in2
Overall length tolerance+0.0600/-0.0600 in
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter in3/16
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Harvey Tool5/32" 2-Flute Solid Carbide Square End Mill - Harvey Tool 72156-C4 $43.06 Harvey Tool5/32" 2-Flute Solid Carbide Square End Mill - Harvey Tool 72156 $22.24 Harvey Tool5/32" 2-Flute Solid Carbide Square End Mill, TiB2 - Harvey Tool 24210-C8 $39.61 M.A. Ford.5/32" 2-Flute Solid Carbide Square End Mill - M.A. Ford. 13615621 $43.22
