Seco

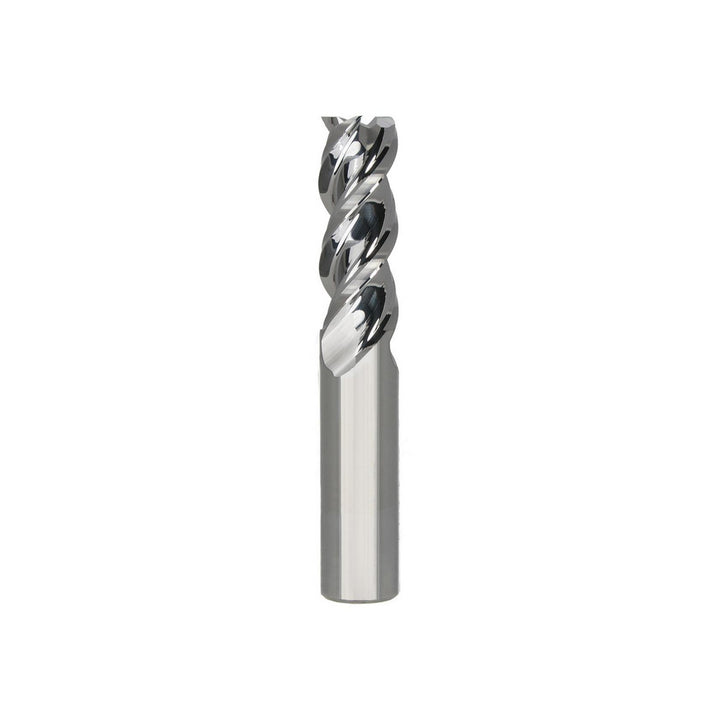

3/16" 3-Flute Solid Carbide Square End Mill - Seco 17003137

MFR# 17003137Series A345

$40.15List $51.50 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Seco 17003137 is a 3/16 3-flute Solid Carbide (Micrograin) square end mill. Suited for aluminum & non-ferrous. 9/16 length of cut, 2 overall length. Series A345.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in9/16

Material gradeMicrograin

Mill diameter in3/16

Mill diameter tolerance-0.0000/-0.0020 in

Number of flutes3

Overall length in2

Overall length tolerance+0.0015/-0.0015 in

Primary workpiece materialAluminum & Non-Ferrous

Shank diameter in3/16

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexNo
