Seco

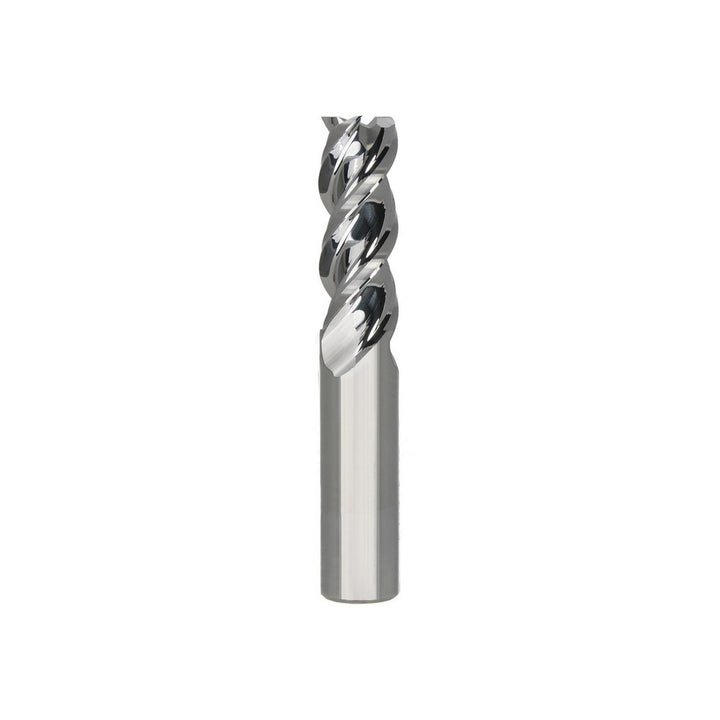

1/4" 3-Flute Solid Carbide Square End Mill - Seco 17003141

MFR# 17003141Series A345

$41.64List $53.40 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Seco 17003141 is a 1/4 3-flute Solid Carbide (Micrograin) square end mill. Suited for aluminum & non-ferrous. 3/4 length of cut, 2-1/2 overall length. Series A345.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in3/4

Material gradeMicrograin

Mill diameter in1/4

Mill diameter tolerance-0.0000/-0.0020 in

Number of flutes3

Overall length in2-1/2

Overall length tolerance+0.0015/-0.0015 in

Primary workpiece materialAluminum & Non-Ferrous

Shank diameter in1/4

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexNo
