Seco

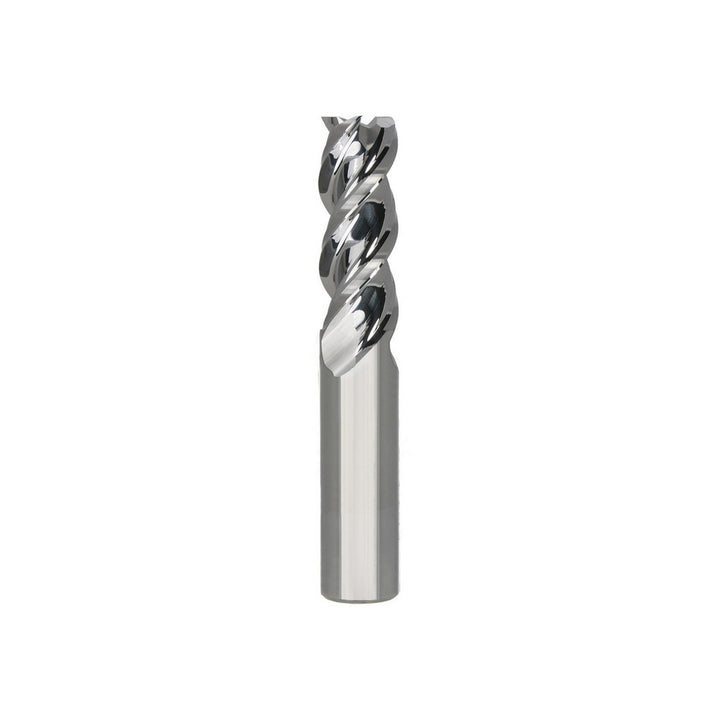

1/4" 3-Flute Solid Carbide Square End Mill - Seco 17003142
MFR# 17003142Series A345
$64.87List $83.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The Seco 17003142 is a 1/4 3-flute Solid Carbide (Micrograin) square end mill. Suited for aluminum & non-ferrous. 1-1/4 length of cut, 4 overall length. Series A345.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/4
Mill diameter tolerance+0.0000 to -0.0020 in
Number of flutes3
Overall length in4
Overall length tolerance+0.0600/-0.0600 in
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter in1/4
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexNo
