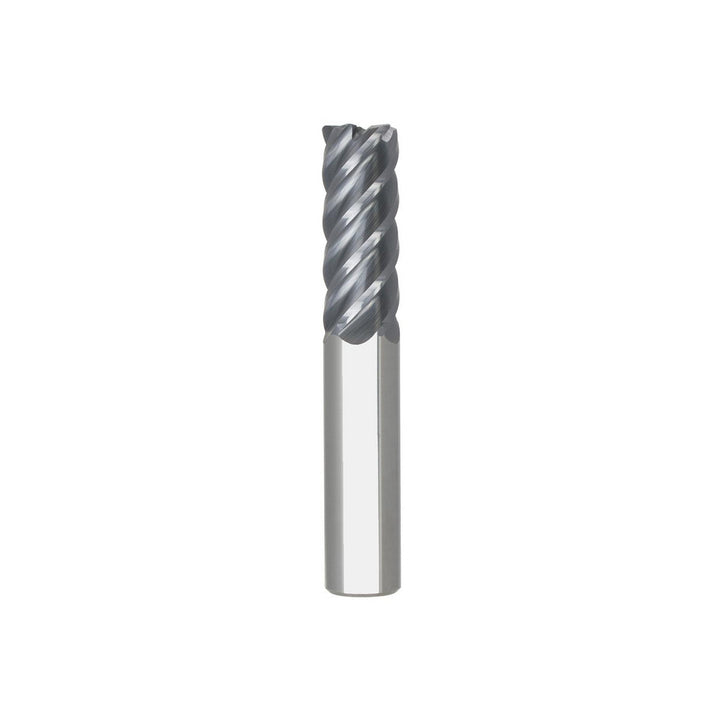

5/8" 5-Flute Solid Carbide Square End Mill - Seco 17003463

Seco

5/8" 5-Flute Solid Carbide Square End Mill - Seco 17003463

MFR# 17003463Series S545

$234.08List $295.00 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes5
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Seco 17003463 is a 5/8 5-flute Solid Carbide (Micrograin) square end mill. Suited for steel, stainless steel, cast iron, high-temp alloy, aluminum & non-ferrous, hardened materials. 1-5/8 length of cut, 3-1/2 overall length. Series S545.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-5/8
Material gradeMicrograin
Mill diameter in5/8
Mill diameter tolerance+0.0000 to -0.0020 in
Number of flutes5
Overall length in3-1/2
Overall length tolerance+0.0600/-0.0600 in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Aluminum & Non-Ferrous; Hardened Materials
Shank diameter in5/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexNo
