Seco

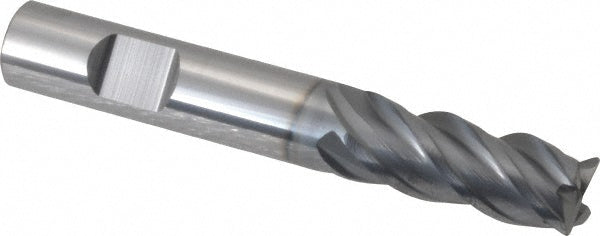

3/8" 4-Flute Solid Carbide Corner Radius End Mill, AlCrN - Seco 17004134

MFR# 17004134Series STR440

$72.83List $93.40 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

CoatingAlCrN

Description

The Seco 17004134 is a 3/8 4-flute Solid Carbide corner radius end mill with a AlCrN finish for longer tool life. Suited for stainless steel, superalloys & titanium, hard material. 7/8 length of cut, 2-1/2 overall length. Series STR440.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlCrN

Coolant throughNo

Corner radius0.0200

Corner radius tolerance+0.00100 to -0.00100 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in7/8

Length typeShort

Material applicationStainless Steel; Superalloys & Titanium; Hard Material

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes4

Overall length in2-1/2

Overall length tolerance-0.0600/0.0600 in

PitchNormal

Primary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material

Shank diameter in3/8

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeWeldon Flat

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexNo
