Seco

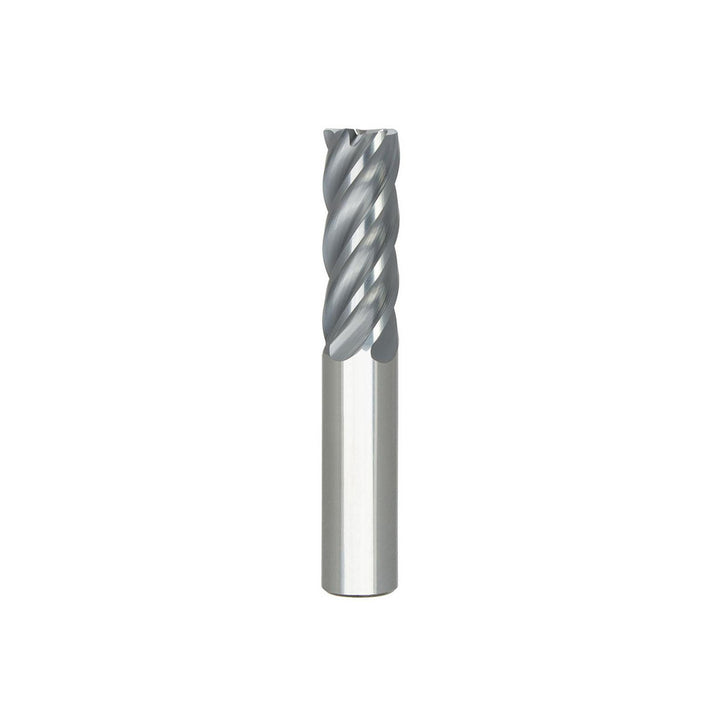

5/8" 5-Flute Solid Carbide Corner Radius End Mill, AlCrN - Seco 17004325

MFR# 17004325Series STR540

$195.05List $250.16 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes5

MaterialSolid Carbide

CoatingAlCrN

Description

The Seco 17004325 is a 5/8 5-flute Solid Carbide corner radius end mill with a AlCrN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium, hard material. 1-1/4 length of cut, 3-1/2 overall length. Series STR540.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlCrN

Coolant throughNo

Corner radius0.0450

Corner radius tolerance+0.00100 to -0.00100 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in1-1/4

Length typeShort

Material applicationSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Material removal typeRoughing & Finishing

Mill diameter in5/8

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes5

Overall length in3-1/2

Overall length tolerance-0.0600/0.0600 in

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Shank diameter in5/8

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexNo
