Seco

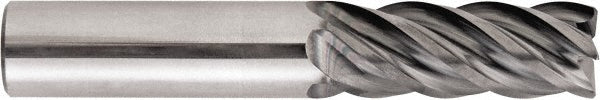

0.3937" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 17004394

MFR# 17004394Series STR540M

$60.15List $77.15 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Seco 17004394 is a 0.3937 5-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium, hard material. Series STR540M.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0197

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut0.7874

Length typeShort

Material applicationSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Material removal typeRoughing & Finishing

Mill diameter0.3937

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes5

Overall length (mm)73.00

Overall length tolerance-0.0600/0.0600 in

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Shank diameter (mm)10.00

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexNo
