Seco

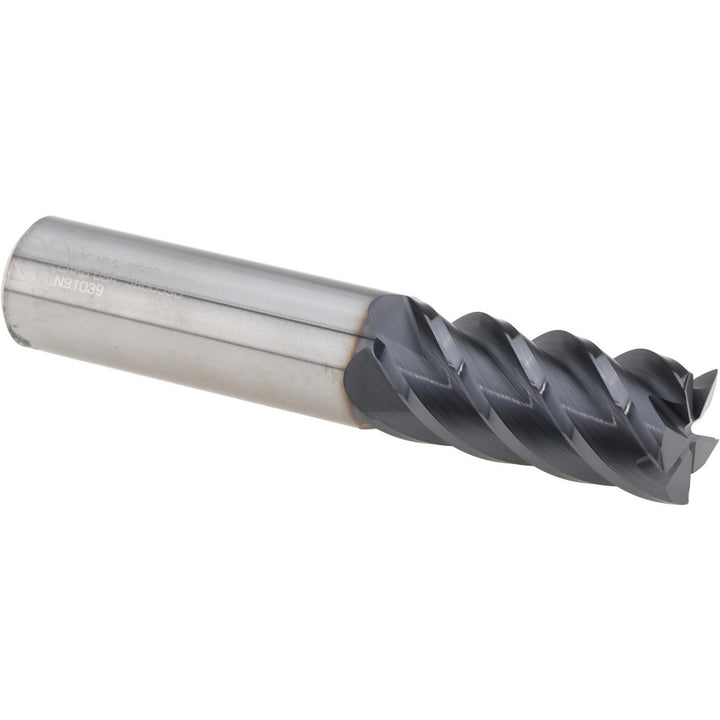

3/4" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 17007039

MFR# 17007039Series S545R

$286.93List $368.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Seco 17007039 is a 3/4 5-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium, hard material. 1-5/8 length of cut, 4 overall length. Series S545R.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0150

Corner radius tolerance+0.00100 to -0.00100 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in1-5/8

Length typeShort

Material applicationSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Material removal typeFinishing

Mill diameter in3/4

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes5

Overall length in4

Overall length tolerance-0.0600/0.0600 in

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Shank diameter in3/4

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexNo
