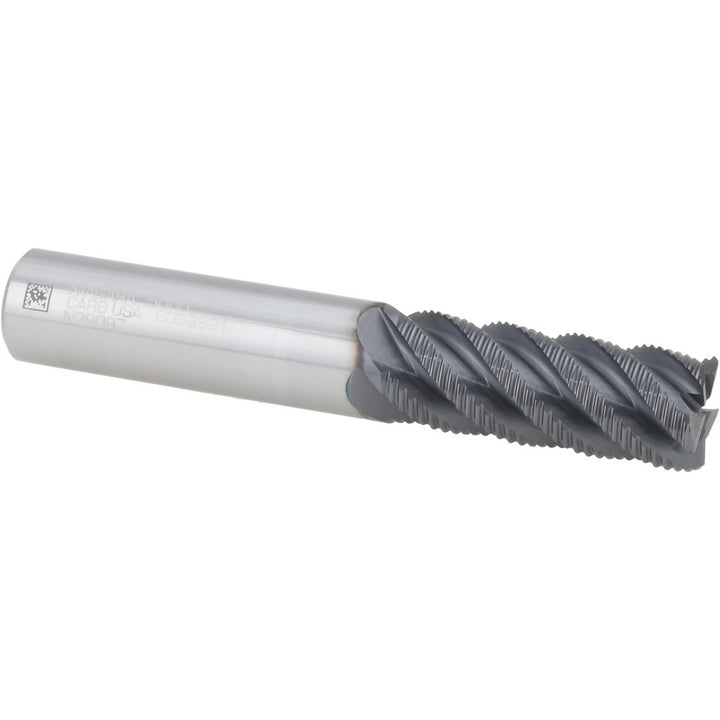

0.5" 5-Flute Solid Carbide Roughing End Mill, TiAlN - Seco 17007608

Seco

0.5" 5-Flute Solid Carbide Roughing End Mill, TiAlN - Seco 17007608

MFR# 17007608Series SR545

$164.52List $211.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingTiAlN

Description

The Seco 17007608 is a 0.5 5-flute Solid Carbide (M42) roughing end mill with a TiAlN finish for longer tool life. Series SR545.

Specifications

CentercuttingYes
Chamfer angle45
Chamfer width0.0250
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut1.2500
Material gradeM42
Maximum helix angle45
Mill diameter0.5
Mill diameter frac in1/2
Mill diameter tolerance+0.000 to -0.003 in
Number of flutes5
Overall length tolerance+0.060 to -0.060 in
PitchFine
Shank diameter in1/2
Shank diameter tolerance-0.0001 to -0.0004 in
Shank typeStraight-Cylindrical
Single or double endSingle
