SGS

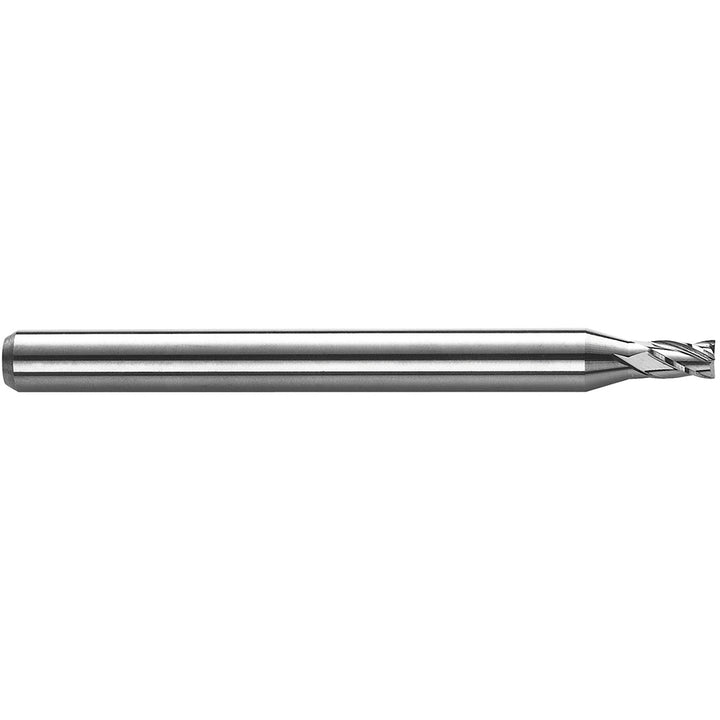

0.1000" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 02690

MFR# 02690

$32.16List $41.25 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 02690 is a 0.1000 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 0.8 length of cut, 2-1/2 overall length.

Specifications

CentercuttingYes

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut0.8

Length of cut range0.8000 - 1.0000

Length typeExtended

Material gradeMicrograin

Mill diameter0.1000

Mill diameter tolerance+0.000 to -0.001 in

Number of flutes4

Overall length in2-1/2

Overall length tolerance+0.062/-0.062 in

Shank diameter in1/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Variable helixNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
