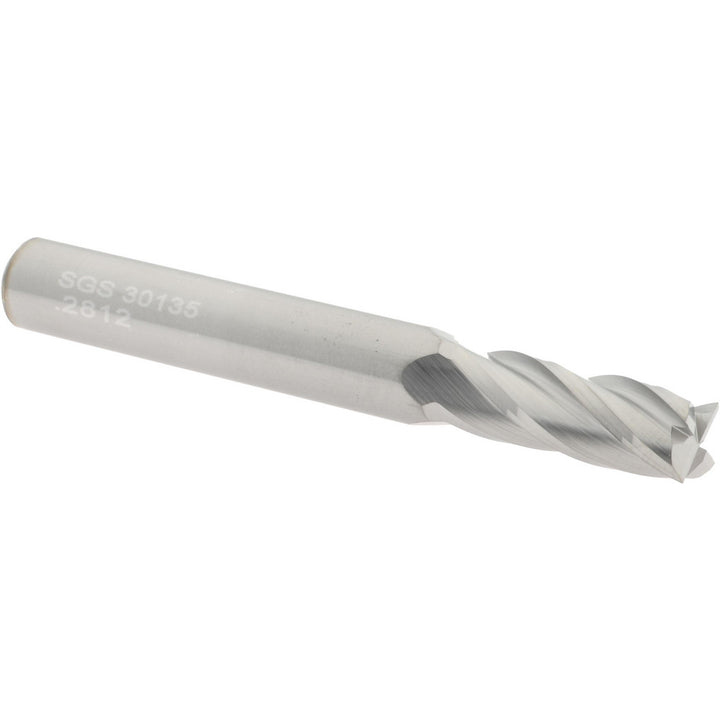

9/32" 4-Flute Solid Carbide Square End Mill - SGS 30135

SGS

9/32" 4-Flute Solid Carbide Square End Mill - SGS 30135

MFR# 30135Series 1

$31.97List $41.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/32
Flutes4
MaterialSolid Carbide

Description

The SGS 30135 is a 9/32 4-flute Solid Carbide (Micrograin) square end mill. 3/4 length of cut, 2-1/2 overall length. Series 1.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeRegular
Material gradeMicrograin
Mill diameter in9/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-1/2
Shank diameter in5/16
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
