SGS

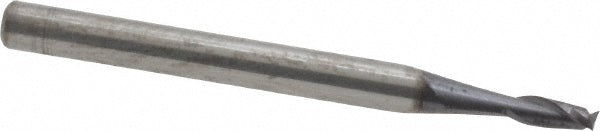

5/64" 2-Flute Solid Carbide Square End Mill, AlTiN - SGS 30435
MFR# 30435Series 3
$20.90List $26.34
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/64
Flutes2
MaterialSolid Carbide
CoatingAlTiN
Description
The SGS 30435 is a 5/64 2-flute Solid Carbide (Micrograin) square end mill with a Ti-NAMITE-A finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, aluminum & non-ferrous, hardened materials. 3/16 length of cut, 1-1/2 overall length. Series 3.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/16
Length typeRegular
Material gradeMicrograin
Mill diameter in5/64
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes2
Overall length in1-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Aluminum & Non-Ferrous; Hardened Materials
Shank diameter in1/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
