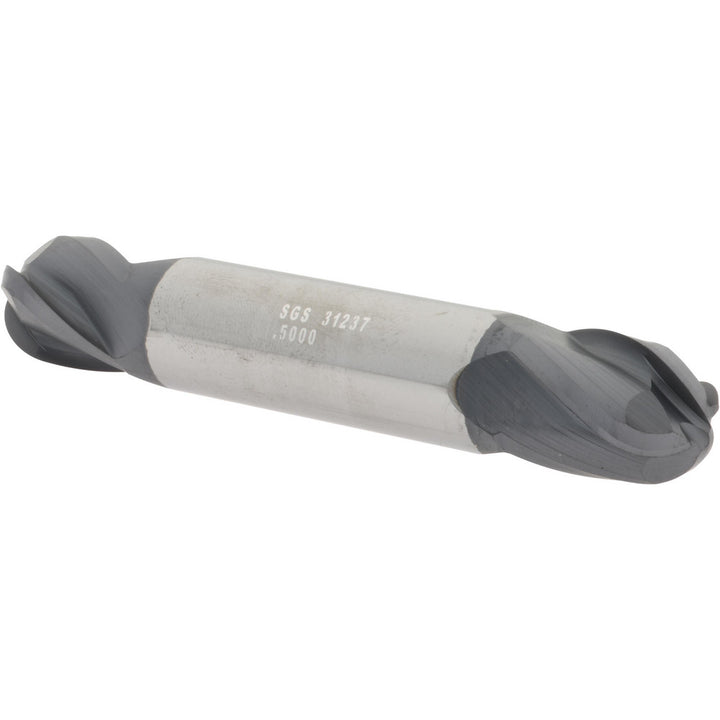

1/2" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 31237

SGS

1/2" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 31237

MFR# 31237Series 14B

$111.76List $143.33 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 31237 is a 1/2 4-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. 5/8 length of cut, 3 overall length. Series 14B.

Specifications

ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length typeStub
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in3
Shank diameter in1/2
Shank diameter tolerance+0.00000 to -0.00043 in
Single or double endDouble
Variable helixNo
Variable indexNo
