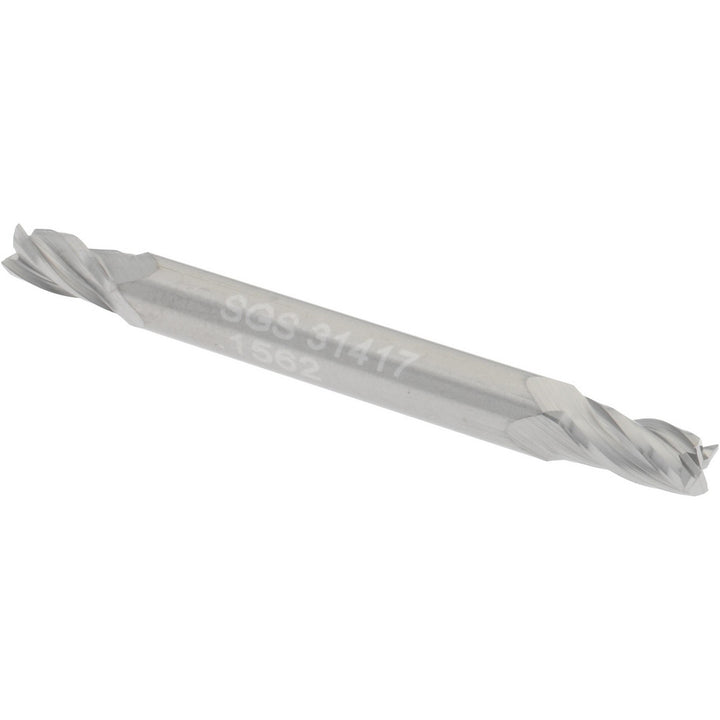

5/32" 4-Flute Solid Carbide Square End Mill - SGS 31417
MFR# 31417Series 14
$30.88List $39.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/32
Flutes4
MaterialSolid Carbide
Description
The SGS 31417 is a 5/32 4-flute Solid Carbide (Micrograin) square end mill. 5/16 length of cut, 2 overall length. Series 14.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/16
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeMicrograin
Mill diameter in5/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2
Shank diameter in3/16
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
