SGS

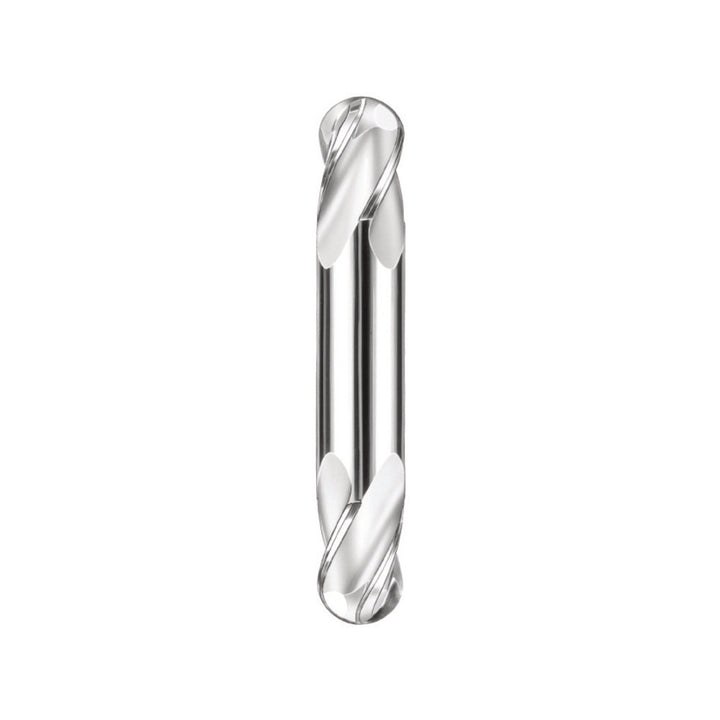

5/16" 4-Flute Solid Carbide Ball End Mill - SGS 31434
MFR# 31434Series 14B
$54.29List $69.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/16
Flutes4
MaterialSolid Carbide
CoatingUncoated
Description
The SGS 31434 is a 5/16 4-flute Solid Carbide (Micrograin) ball end mill. 1/2 length of cut, 2-1/2 overall length. Series 14B.
Specifications
ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length typeStub
Material gradeMicrograin
Mill diameter in5/16
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in2-1/2
Shank diameter in5/16
Shank diameter tolerance+0.00000 to -0.00035 in
Single or double endDouble
Variable helixNo
Variable indexNo
