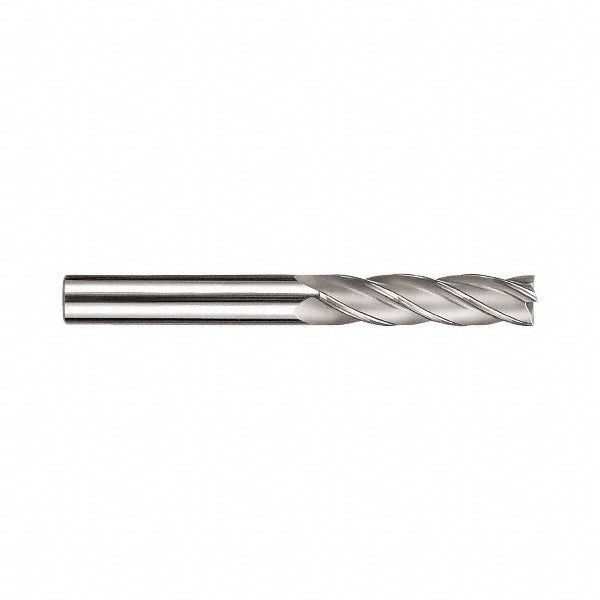

1/2" 4-Flute Solid Carbide Square End Mill, TiN - SGS 31733

SGS

1/2" 4-Flute Solid Carbide Square End Mill, TiN - SGS 31733

MFR# 31733Series 1L

$103.44List $132.67 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingTiN

Description

The SGS 31733 is a 1/2 4-flute Solid Carbide (Micrograin) square end mill with a Titanium Nitride finish for longer tool life. 2 length of cut, 4-1/2 overall length. Series 1L.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in2
Length of cut range2.0000+
Length typeLong
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in4-1/2
Shank diameter in1/2
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
