SGS

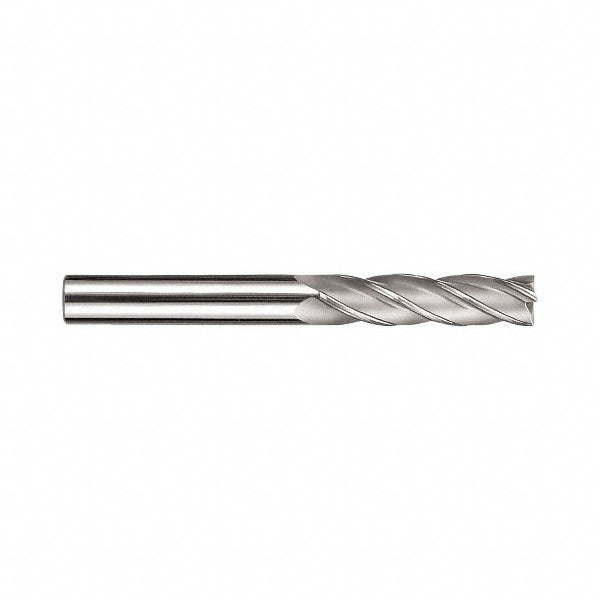

3/4" 4-Flute Solid Carbide Square End Mill, TiN - SGS 31735

MFR# 31735Series 1L

$254.18List $326.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialSolid Carbide

CoatingTiN

Description

The SGS 31735 is a 3/4 4-flute Solid Carbide (Micrograin) square end mill with a Titanium Nitride finish for longer tool life. 2-1/4 length of cut, 5 overall length. Series 1L.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in2-1/4

Length of cut range2.0000+

Length typeLong

Material gradeMicrograin

Mill diameter in3/4

Mill diameter tolerance+0.000/-0.002 in

Number of flutes4

Overall length in5

Shank diameter in3/4

Shank diameter tolerance+0.00000/-0.00051 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexYes
