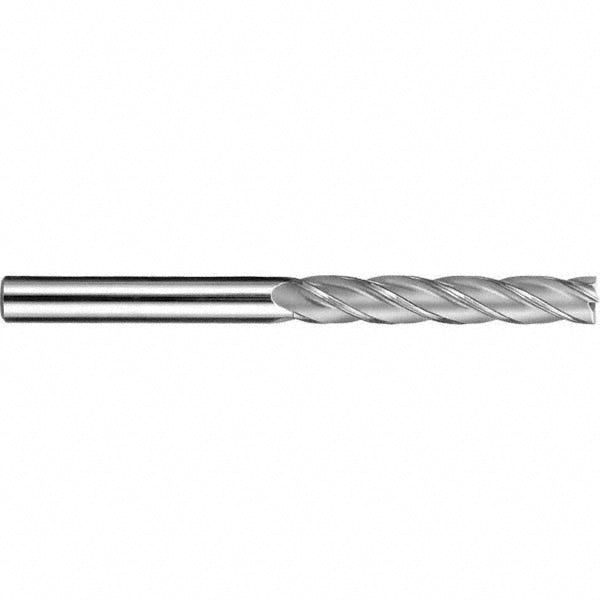

3/8" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 31764

MFR# 31764Series 1L

$59.02List $75.70 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 31764 is a 3/8 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 1-1/8 length of cut, 3 overall length. Series 1L.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/8

Length of cut range1.0000 - 1.2500

Length typeLong

Material gradeMicrograin

Mill diameter in3/8

Mill diameter tolerance+0.000/-0.002 in

Number of flutes4

Overall length in3

Shank diameter in3/8

Shank diameter tolerance+0.00000/-0.00035 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexYes
