1/4" 4-Flute Solid Carbide Square End Mill, TiN - SGS 31862

SGS

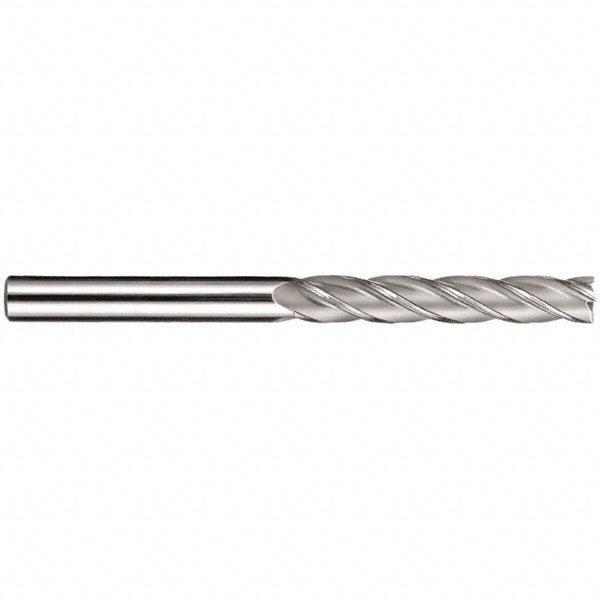

1/4" 4-Flute Solid Carbide Square End Mill, TiN - SGS 31862

MFR# SGS-31862Series 1EL

$34.60List $44.38 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingTiN

Description

The SGS 31862 is a 1/4 4-flute Solid Carbide (Micrograin) square end mill with a Titanium Nitride finish for longer tool life. 1-1/2 length of cut, 4 overall length. Series 1EL.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/2
Length typeExtra Long
Material gradeMicrograin
Mill diameter in1/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in4
Shank diameter in1/4
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
