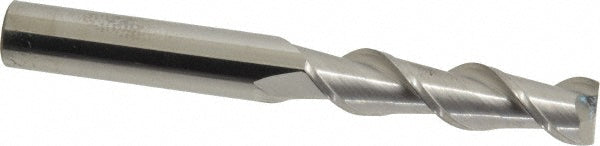

3/8" 2-Flute Solid Carbide Square End Mill - SGS 32038

SGS

3/8" 2-Flute Solid Carbide Square End Mill - SGS 32038

MFR# 32038Series 44

$113.49List $145.55 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes2
MaterialSolid Carbide

Description

The SGS 32038 is a 3/8 2-flute Solid Carbide square end mill. Suited for non-ferrous metal. 1-1/2 length of cut, 3-1/4 overall length. Series 44.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-1/2
Length typeRegular
Mill diameter in3/8
Mill diameter tolerance+0.00000/-0.00035 in
Number of flutes2
Overall length in3-1/4
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/8
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
