SGS

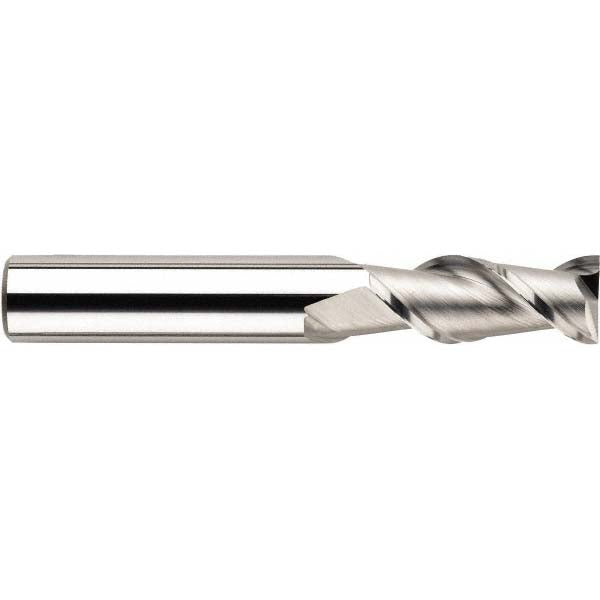

3/8" 2-Flute Solid Carbide Square End Mill, TiB2 - SGS 32059

MFR# 32059Series 44

$170.34List $218.46 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes2

MaterialSolid Carbide

CoatingTiB2

Description

The SGS 32059 is a 3/8 2-flute Solid Carbide (Micrograin) square end mill with a Titanium Diboride finish for longer tool life. Suited for non-ferrous metal. 2-1/2 length of cut, 4-1/4 overall length. Series 44.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiB2

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in2-1/2

Length of cut range2.0000+

Length typeStub

Material gradeMicrograin

Mill diameter in3/8

Mill diameter tolerance+0.00000/-0.00035 in

Number of flutes2

Overall length in4-1/4

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/8

Shank diameter tolerance+0.00000/-0.00035 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
