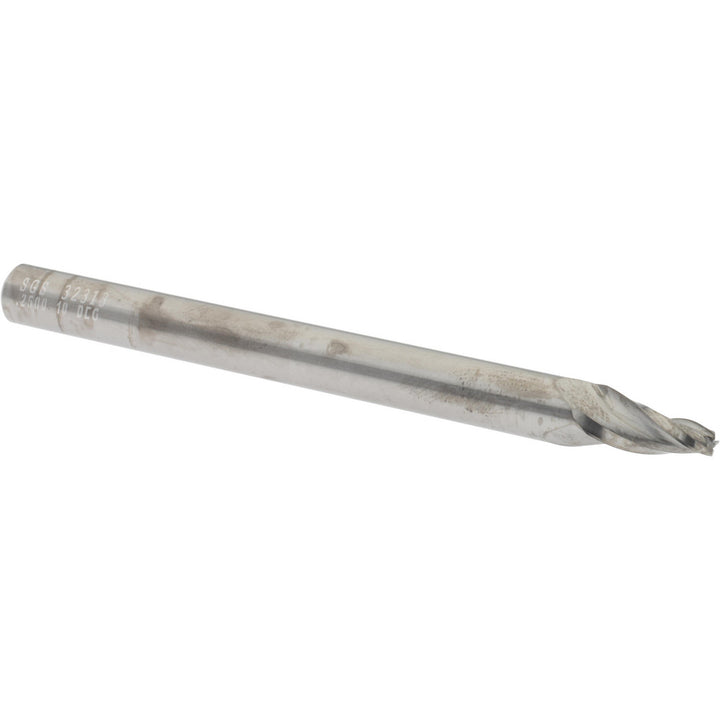

0.0940" 3-Flute Solid Carbide Tapered End Mill - SGS 32313

SGS

0.0940" 3-Flute Solid Carbide Tapered End Mill - SGS 32313

MFR# 32313Series 23

$56.77List $72.81 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The SGS 32313 is a 0.0940 3-flute Solid Carbide (Micrograin) tapered end mill. 1/2 length of cut, 3 overall length. Series 23.

Specifications

CentercuttingYes
Coating finishBright/Uncoated
End mill materialSolid Carbide
End shapeSquare
Flute directionRight Hand
Flute typeSpiral
Helix angle28
Length of cut in1/2
Material gradeMicrograin
Mill diameter0.0940
Number of flutes3
Overall length in3
Shank diameter in1/4
Shank diameter tolerance-.0001/-.0004 in
Small end diameter in3/32
Small end diameter tolerance+0.001/-0.002 in
Taper angle per side10.00
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
