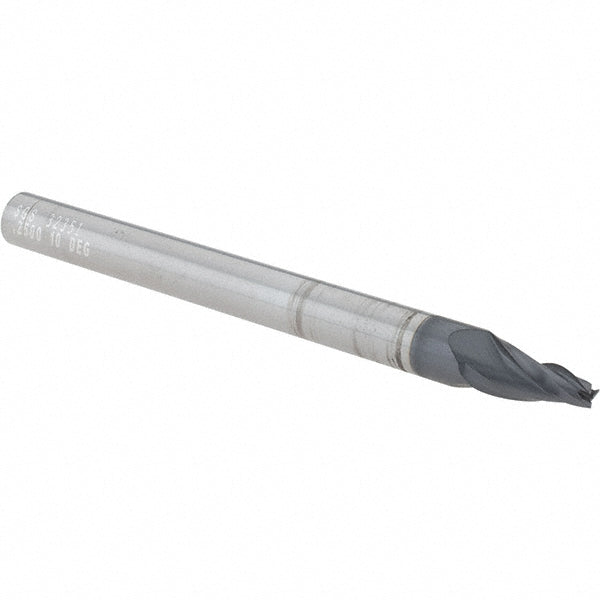

0.0940" 3-Flute Solid Carbide Tapered End Mill, AlTiN - SGS 32351

SGS

0.0940" 3-Flute Solid Carbide Tapered End Mill, AlTiN - SGS 32351

MFR# 32351Series 23

$63.29List $81.17 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 32351 is a 0.0940 3-flute Solid Carbide (Micrograin) tapered end mill with a AlTiN finish for longer tool life. 1/2 length of cut, 3 overall length. Series 23.

Specifications

CentercuttingYes
Coating finishAlTiN
End mill materialSolid Carbide
End shapeSquare
Flute directionRight Hand
Flute typeSpiral
Helix angle28
Length of cut in1/2
Material gradeMicrograin
Mill diameter0.0940
Number of flutes3
Overall length in3
Shank diameter in1/4
Shank diameter tolerance+0.00000/-0.00035 in
Small end diameter in3/32
Small end diameter tolerance+0.001/-0.002 in
Taper angle per side10.00
