SGS
0.1880" 3-Flute Solid Carbide Tapered End Mill - SGS 32315
MFR# 32315Series 23
$81.02List $103.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingUncoated
Description

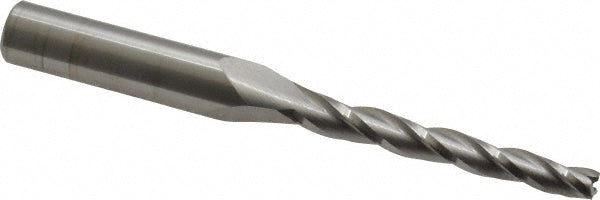

The SGS 32315 is a 0.1880 3-flute Solid Carbide (Micrograin) tapered end mill. 1-3/4 length of cut, 3-1/2 overall length. Series 23.
Specifications
CentercuttingYes
Coating finishUncoated
End mill materialSolid Carbide
End shapeSquare
Flute directionRight Hand
Flute typeSpiral
Helix angle28
Length of cut in1-3/4
Material gradeMicrograin
Mill diameter0.1880
Number of flutes3
Overall length in3-1/2
Shank diameter in3/8
Shank diameter tolerance-.0001/-.0004 in
Small end diameter in3/16
Small end diameter tolerance+0.001/-0.002 in
Taper angle per side1.00
