SGS
0.1880" 3-Flute Solid Carbide Tapered End Mill - SGS 32418
MFR# 32418Series 24B
$90.43List $115.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingUncoated
Description

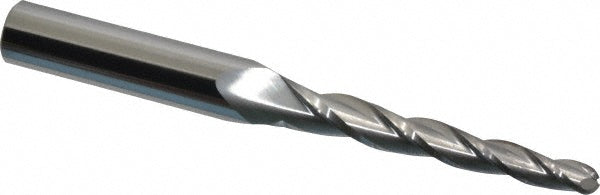

The SGS 32418 is a 0.1880 3-flute Solid Carbide (Micrograin) tapered end mill. 1-3/4 length of cut, 3-1/2 overall length. Series 24B.
Specifications
CentercuttingYes
Coating finishUncoated
End mill materialSolid Carbide
End shapeBall
Flute directionRight Hand
Flute typeSpiral
Helix angle28
Length of cut in1-3/4
Material gradeMicrograin
Mill diameter0.1880
Nose radius in3/32
Number of flutes3
Overall length in3-1/2
Shank diameter in3/8
Shank diameter tolerance-0.0001/-0.0004 in
Small end diameter in3/16
Small end diameter tolerance+0.0000/-0.0010 in
Taper angle per side1.50
