3/8" 5-Flute Solid Carbide Ball End Mill, AlTiN - SGS 32502

MFR# 32502Series 55B

$68.35List $87.67 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

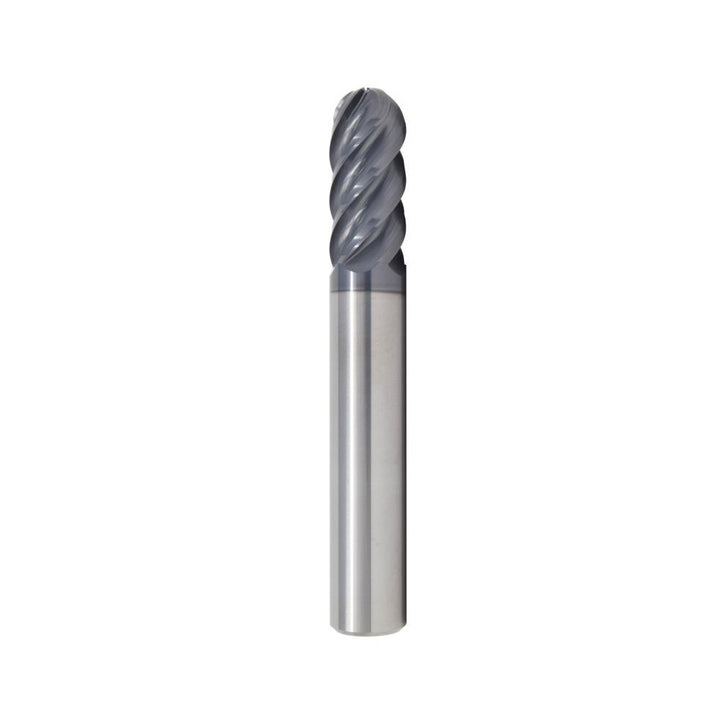

The SGS 32502 is a 3/8 5-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. 1 length of cut, 2-1/2 overall length. Series 55B.

Specifications

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Helix styleHigh

Length of cut in1

Length typeStandard

Material gradeMicrograin

Material removal typeFinishing

Mill diameter in3/8

Mill diameter tolerance+0.0000/-0.0020 in

Nose radius0.1870

Number of flutes5

Overall length in2-1/2

Overall length tolerance+0.062/-0.064 in

Shank diameter in3/8

Shank diameter toleranceh6

Single or double endSingle

Variable helixNo

Variable indexNo
