Helical Solutions

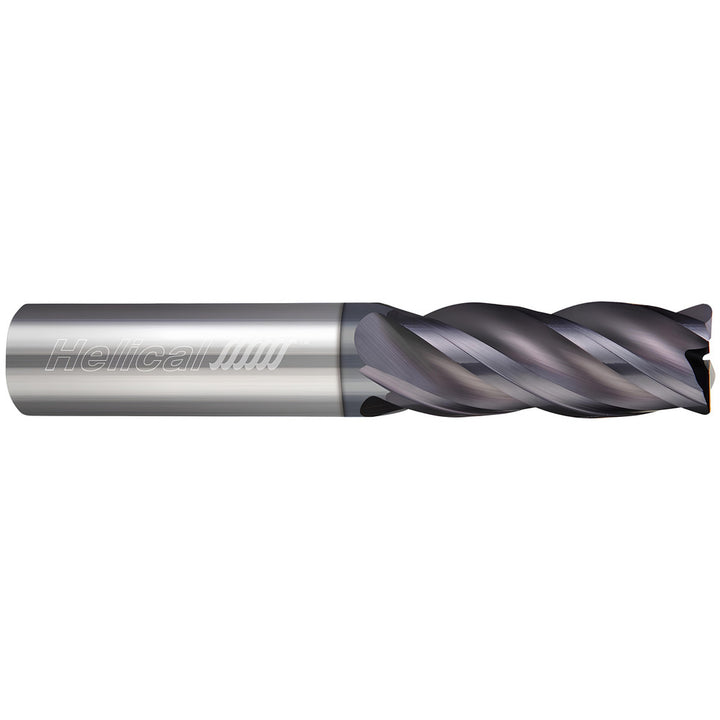

3/8in" 5-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 45228

MFR# 45228Series HEV-5

$75.28List $87.89 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8in

Flutes5

MaterialSolid Carbide

CoatingAPLUS

Description

The Helical Solutions 45228 is a 3/8in 5-flute Solid Carbide corner radius end mill with a APLUS finish for longer tool life. Suited for steel, cast iron. 1in length of cut, 3 overall length. Series HEV-5.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAPLUS

Coolant throughNo

Corner radius0.0600

Corner radius tolerance-0.0020 to 0.0020 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHigh Precision Toolholders

Length of cut in1in

Length typeRegular

Material applicationSteel; Cast Iron

Material removal typeRoughing & Finishing

Mill diameter in3/8in

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes5

Overall length in3

Overall length tolerance-0.0620/0.0620 in

PitchVariable

Primary workpiece materialSteel; Cast Iron

Secondary workpiece materialStainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexYes
