3/8" 5-Flute Solid Carbide Square End Mill, WU20PE - Widia 7008487

Widia

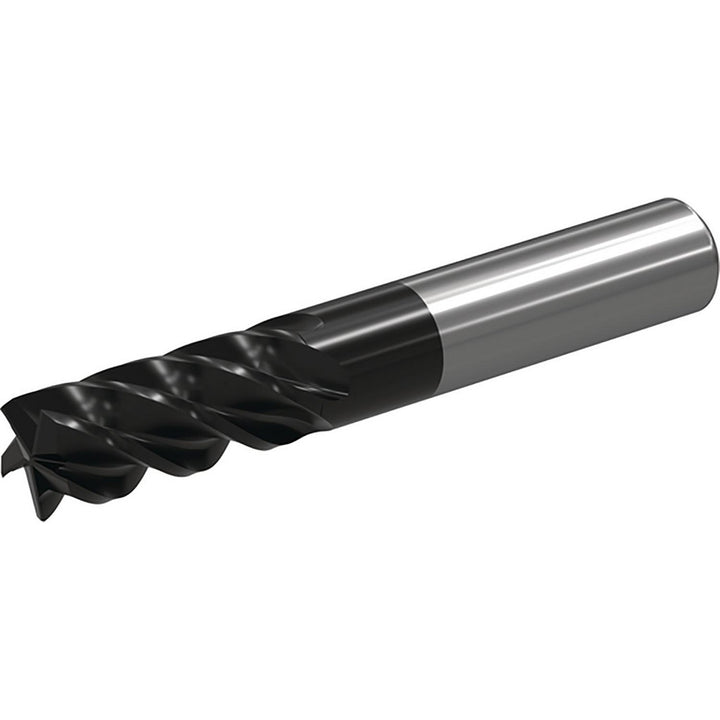

3/8" 5-Flute Solid Carbide Square End Mill, WU20PE - Widia 7008487

MFR# 7008487Series W511

$48.18List $61.79 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes5
MaterialSolid Carbide
CoatingWU20PE

Description

The Widia 7008487 is a 3/8 5-flute Solid Carbide square end mill with a WU20PE finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 7/8 length of cut, 2-1/2 overall length. Series W511.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishWU20PE
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Length of cut in7/8
Length of cut range0.8000 - 1.0000
Length typeRegular
Material gradeSolid Carbide
Mill diameter in3/8
Neck diameter0.375
Neck length0.8750
Number of flutes5
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Shank diameter in3/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

SGS3/8" 5-Flute Solid Carbide Ball End Mill, AlTiN - SGS 32502 $68.35 Helical Solutions3/8in" 5-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 45228 $75.28 Helical Solutions3/8in" 5-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 45212 $69.81 OSG3/8" 5-Flute Solid Carbide Ball End Mill, WXS - OSG 90101411 $233.27
