SGS

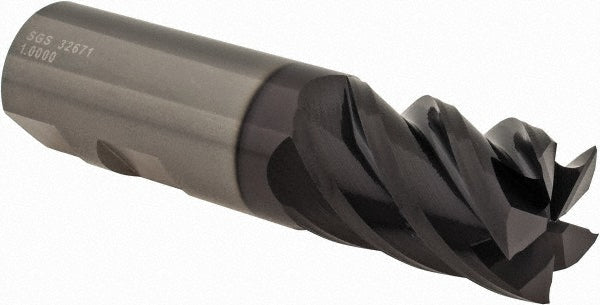

1" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 32671

MFR# 32671Series 55

$369.67List $474.11 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 32671 is a 1 5-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 1-1/2 length of cut, 4 overall length. Series 55.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in1-1/2

Length of cut range1.5000 - 2.0000

Length typeRegular

Material gradeMicrograin

Mill diameter in1

Mill diameter tolerance+0.000/-0.002 in

Number of flutes5

Overall length in4

Shank diameter in1

Shank diameter tolerance+0.00000/-0.00051 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexYes

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
