5/16" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 32675

SGS

5/16" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 32675

MFR# 32675Series 55

$47.17List $59.45 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

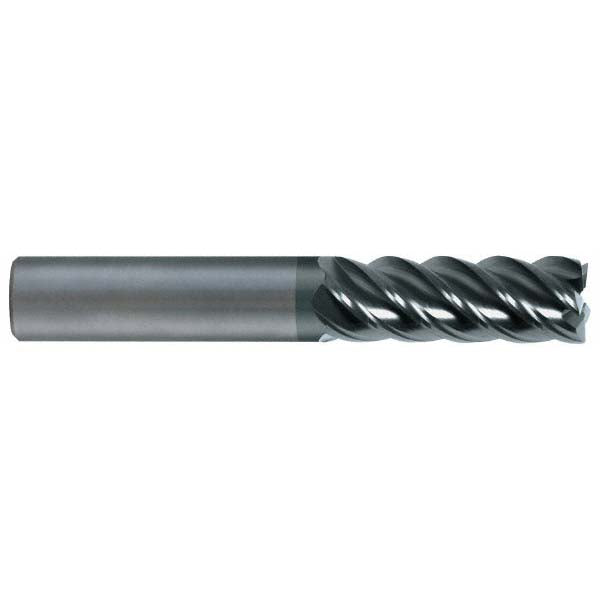

The SGS 32675 is a 5/16 5-flute Solid Carbide (Micrograin) square end mill. 7/16 length of cut, 2 overall length. Series 55.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in7/16
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeMicrograin
Mill diameter in5/16
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes5
Overall length in2
Shank diameter in5/16
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
